Tube thimble rope thimble

Tube thimble rope thimble

Quantity:

Product Description:


Tuble thimble

We have different sizes for option:

Item No. Cable diameter A B C D E F G R Weight
G208 6 80 38 22 14 4.5 3 42 7 0.105
G210 8 80 40 22 16 5 3 42 8 0.125
G212 10 90 47 23 20 8 4 48 8 0.25
G215 12 105 55 27 25 8 5 51 10 0.42
G216 13 115 57 27 27 8.5 5 57 10 0.55
G217 14 115 57 27 27 8.5 5 57 10 0.55
G219 16 120 70 32 30 12 5 54 12 0.64
G222 18 140 73 35 32 13 5 60 16 0.78
G225 22 180 88 45 38 15 6 92 16 1.55
G228 24 180 89 45 42 16 7 85 18 2
G230 26 195 97 47 45/45 19 7 94 18 2.2
G235 32 215 118 60 49/50 21 7 100 20 2.6
G238 34 220 119 60 52 22 7 100 20 3
G240 36 230 130 70 54/55 25 7 98 22 3.2
G245 38 260 138 70 59/60 26 7 120 22 3.6
G250 44 280 145 75 64/65 28 7 130 22 4.06

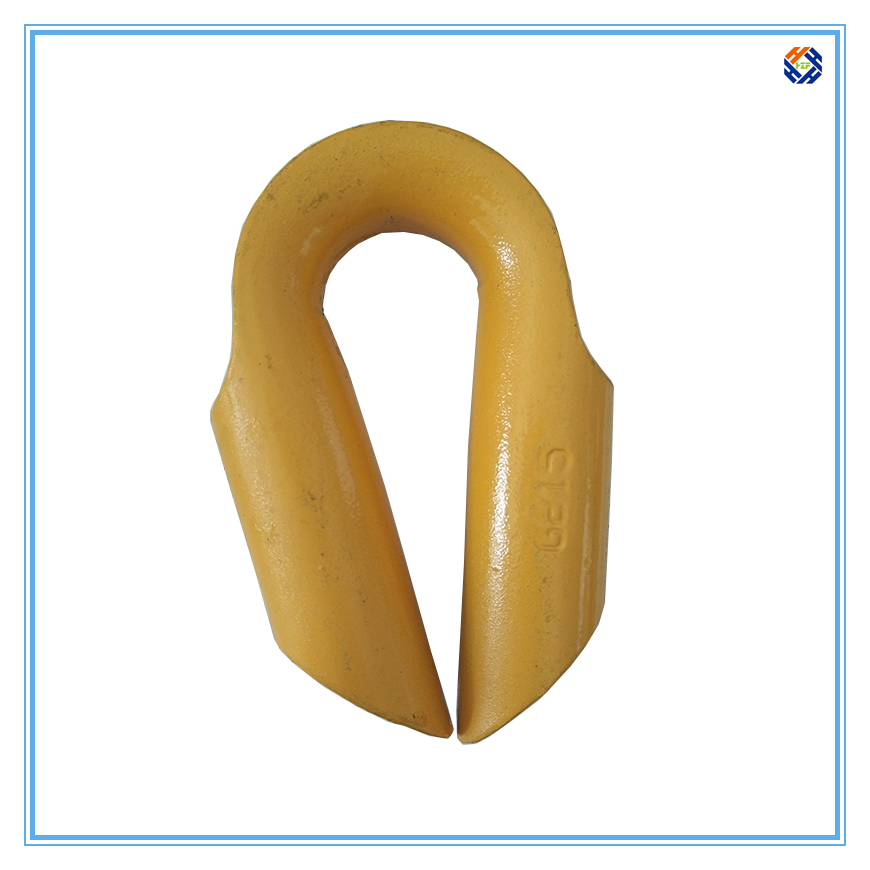

tube thimble

Inspection:


in-house and third party
All the products are strictly inspected by operator and skilled QC with record put down.

Universal inspection tools:  three-coordinates measuring machine,hardness tester, Height ruler, Depth ruler, Outside ruler, Venire Caliper, etc.

Inspection

Packing:

Crate or Plywood Case or as Customers' Request.
