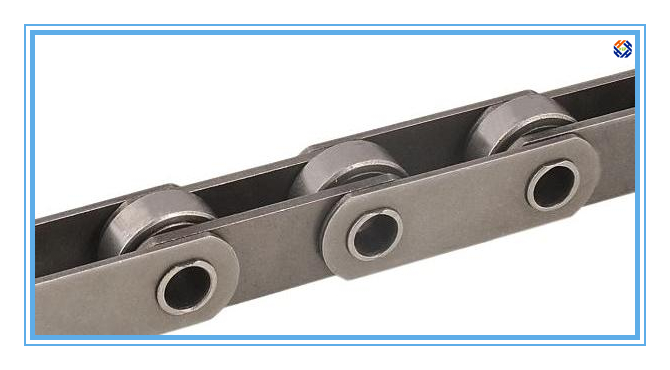

Rollerless Bushed Chain Kinds of Conveyor Chain

Rollerless Bushed Chain Kinds of Conveyor Chain

Quantity:

Products Details as below:

Chain No. Pitch (Inch) Inside width Plate thickness Plate Height Bush/Roller Diam. Pin Diam.

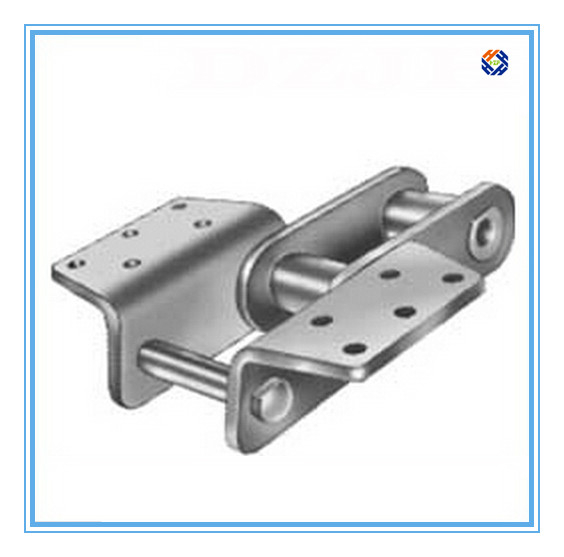

Type Att.No.of Holes Tensile Strength Avg. kN

P B E D C G A1 A2 B1 C1 D1 F1 F1

B.43201/90 3.940 19.050 5/4 40.000 31.800 _ 76 _ 102.000 60.000 _ 32.000 10.500 K-2-4holes 68
B.43252/90 4.920 25.400 7/5 55.000 47.600 _ 105 _ 174.000 90.000 _ 31.000 14.500 K-2-4holes 136
B.69002 4.920 44 7/6 50.000 42.000 19.000 140 _ 182.000 85 _ 45.000 18.000 K-2-4holes 220
B.69003 5.320 55.000 12/10 70.000 60.000 25.000 180 _ 245.000 100.000 _ 55.000 19.000 K-2-4holes 590
6956-PB 6.000 76.200 12.7 76.200 44.450 25.400 _ 184.150 242.888 63.500 _ 47.625 17.463 K-24-4holes 642
6867-R 6.000 76.200 12.7 82.55 44.450 25.400 177.8 304.801 355.601 88.900 88.900 63.500 14.288 K-44-8holes 756
6S66-R 6.000 63.5 12.7 76.200 60.325 31.75 _ 160.338 249.238 57.15 _ 60.325 17.475 K-2-4holes 742
6869.R 6.000 94.456 15.875 101.600 60.325 31.75 228.6 330.201 381.001 114300 69.850 76.200 17.475 K-44-8holes 1045
6969-R 6.000 94.463 15.875 101.600 63.500 38.100 228.6 330.201 381.001 114300 69.850 76.200 17.475 K-44-8holes 1223
B.43325/95 6.300 50.5 10/8 60.000 50.000 _ 138 _ 215.000 120.000 _ 40.000 18.500 K-2-4holes 272
6864-R 7.000 94.463 15.875 101.600 60.325 31.75 228.6 330.201 381.001 139.700 95.250 76.200 17.475 K-443-10 holes 1045
6874 7.000 101.600 15.875 114.3 69.850 44.450 241.3 342.901 393.701 139.700 95.250 79.375 17.475 K-443/K-44-10 holes 1734
6875-R 7.000 95.250 15.875 101.600 63.500 38.100 228.6 330.201 381.001 139.700 95.250 76.200 17.475 K-443/K-44-10 holes 1223
B.43405/95 7.8 50.S00 10/8 60.000 50.000 _ 138 _ 195.000 160.000 _ 50.000 18.500 K-2-4holes 272
B.43207/95 7.8 30.100 10/12 70.000 50.000 _ 160 _ 207.000 160.000 _ 50 18.500 K-2-4holes 385
B.69001 9.84 58 14/12 80.000 63.300 _ 240 _ 330.000 147.000 _ 60.000 24.700 K-2-4holes 600
B.60602 9.84 76.000 16/16 120.000 85 _ 240 _ 300.000 147.000 _ 95.000 22.000 K-2-4holes 1000
B.60904 9.84 76.000 16 120.000 85 44.000 210 _ 270.000 180.000 _ 95.000 22.000 K-3-3holes 883
B.98055 9.84 58 14/12 80.000 63.500 32.86 240 _ 330.000 147.000





Inspection:


in-house and third party
All the products are strictly inspected by operator and skilled QC with record put down.

Universal inspection tools:  three-coordinates measuring machine,hardness tester, Height ruler, Depth ruler, Outside ruler, Venire Caliper, etc.

Inspection

Packing:

Crate or Plywood Case or as Customers' Request.
